Introduction:
This product converts optical, coaxial, digital audio signals into stereo analog audio signals and supports 192kHz/24bit HIFI stereo amplification. Help users solve the problem of connecting different audio interfaces with analog amplifiers, and make the music signal expression more natural, more realistic, Closer to the source sound quality, providing a perfect music experience for the majority of music enthusiasts.

Features:
1. Built-in high-performance TPA3221 and DAC chip, support 192K/24bit sampling rate.
2. Adopt the latest Bluetooth version 5.0 lossless transmission technology.
3. Memory store when power off, Support last time working state memory when power off.

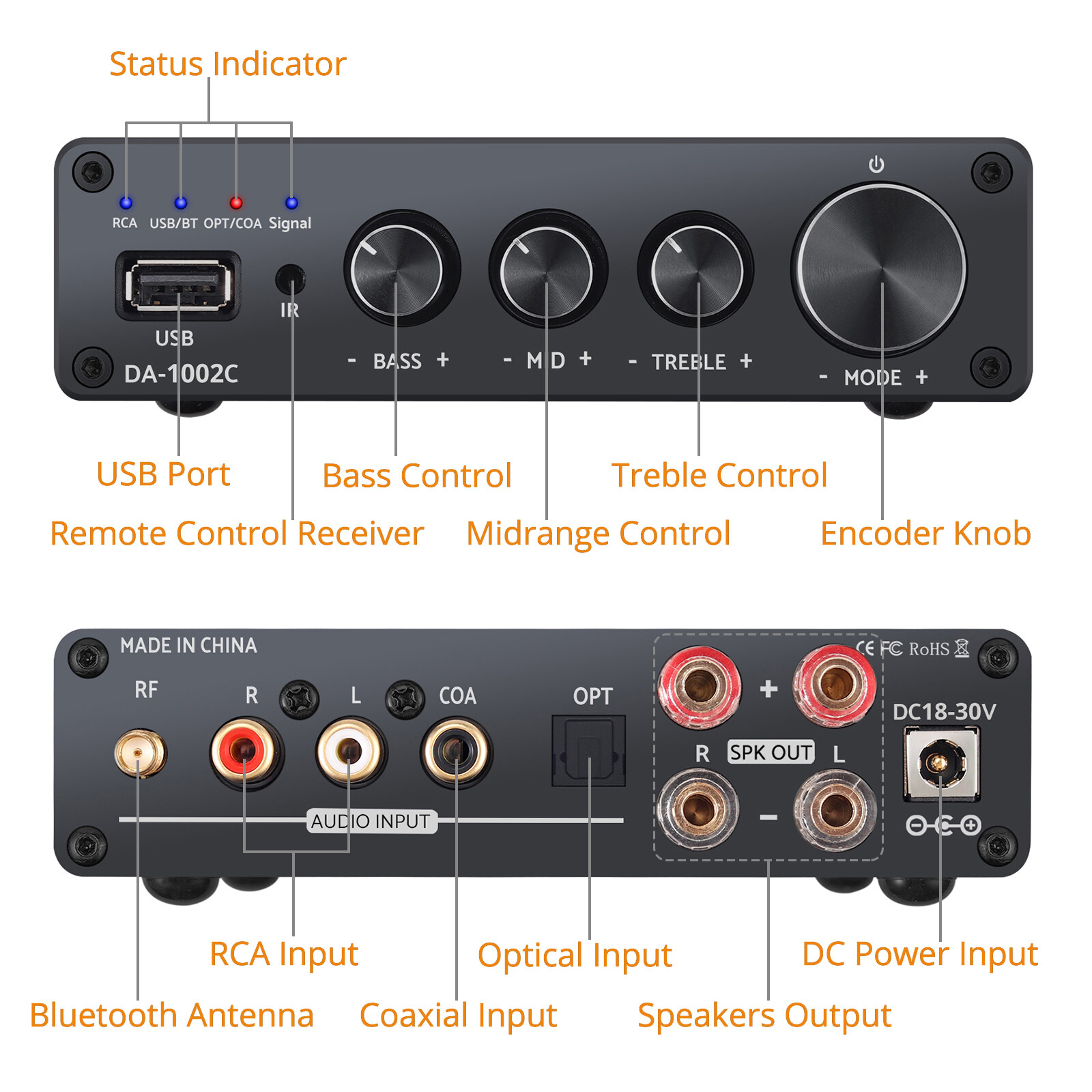

4. Support optical, coaxial, RCA, USB flash disk input model switching.
5. With bass Mid and treble control.
6. With IR wireless remote control, easily adjust volume/ choose input mode/ Mute/ Power ON or OFF.

Specifications:
Audio Formats: PCM
Audio Sample Rate: 32~192kHz/24bit

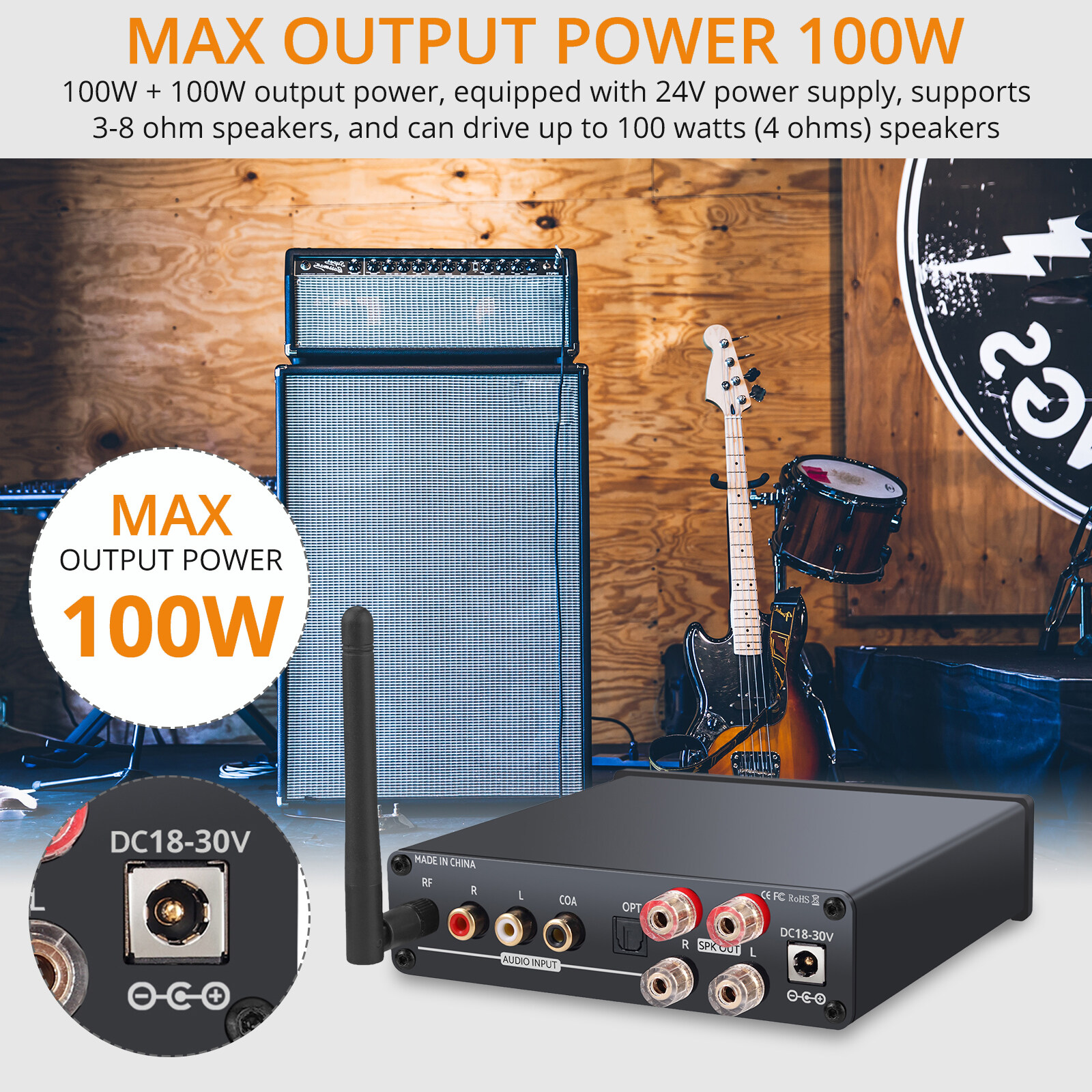

Output power: 100W + 100W
IR remote control: Support 20~60KHz wide frequency IR remote control
Maximum output: 100W(4Ω）
Speaker impedance matching: 3-8Ω
Working voltage: 18-30V/DC
Input sensitivity: 0.775V
Frequency response: 20Hz-20KHz（±1dB）
THD: 0.08%
SNR: ≥98dB

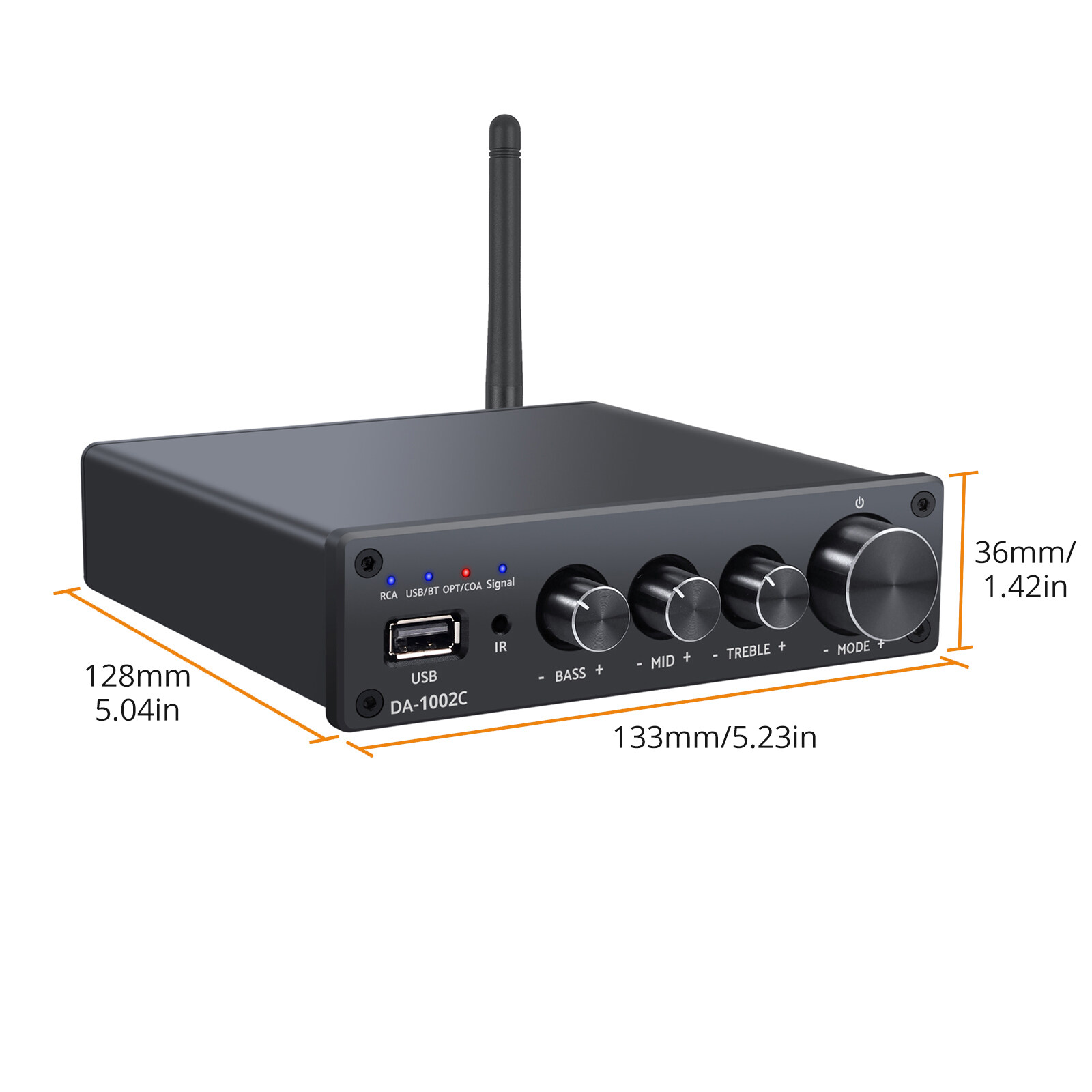

Bare machine size: (L)133*(W)128*(H)36mm
Weight: 510g
Shell material: Aluminum alloy

Special Notice:
1. Please plug the power cord into the amp then the AC outlet.
2. Please select the corresponding input channel by press button on the amplifier.
3. For passive speakers only, not the powered speakers.
4. When using optical or coaxial as the input source, set the audio format of the input device to PCM.
Setting Path: Device Home Page - System Settings - Image & Sound - Sound Settings - Digital Audio Output - PCM/LPCM

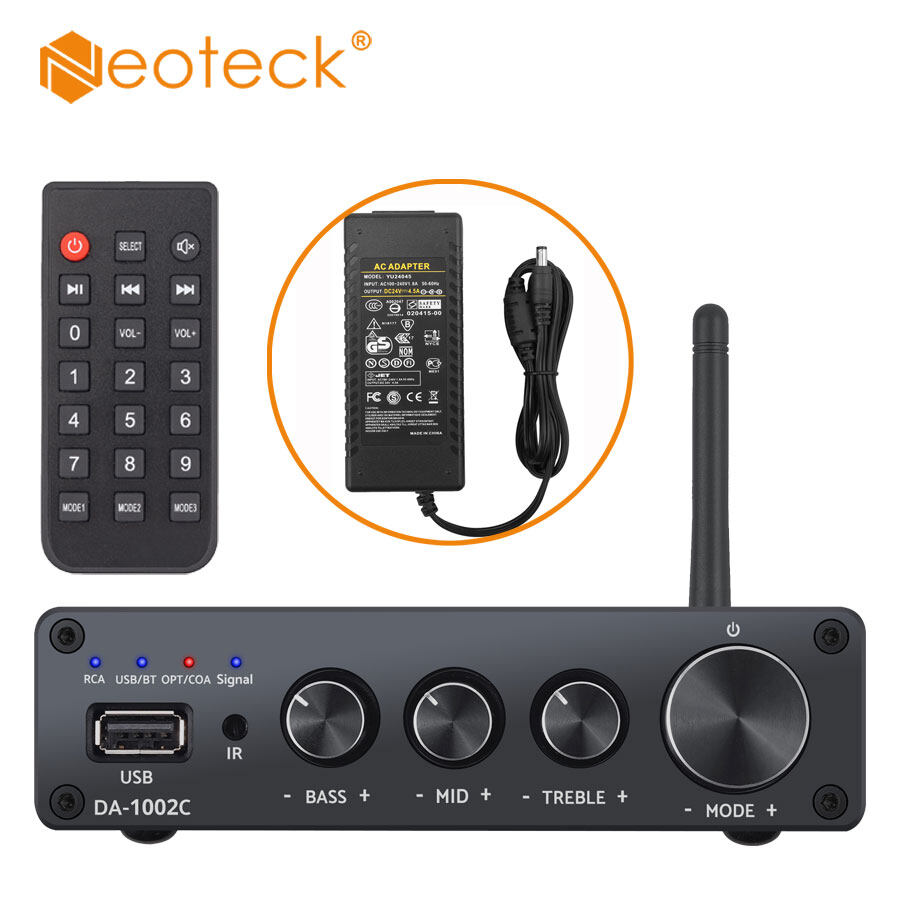

Package Content:
1 x Bluetooth Audio Amplifier
1 x IR Remote Control
1 x 24V/4.5A Power supply
1 x AC power cord
1 x Optical Cable(2m/6ft)
1 x Coaxial Cable(1m/3ft)
1 x User's Manual
