Description:
Compact ultra-low noise phono turntable preamp that converts phono signals to line level signals.
Unique switch button design, designed with grounding post to protect your turntable.
Designed and assembled from high-quality components, ideal for speakers, computers, laptops and more.

Features:
1. A phono turntable preamp converts a phono signal to a line level signal. Designed with grounding posts to protect your turntable.
2. Provides excellent performance through its low noise audio op amp. 2V (PP) max at 10K ohm output. It is best to place the preamp close to the source to reduce unwanted noise and interference.

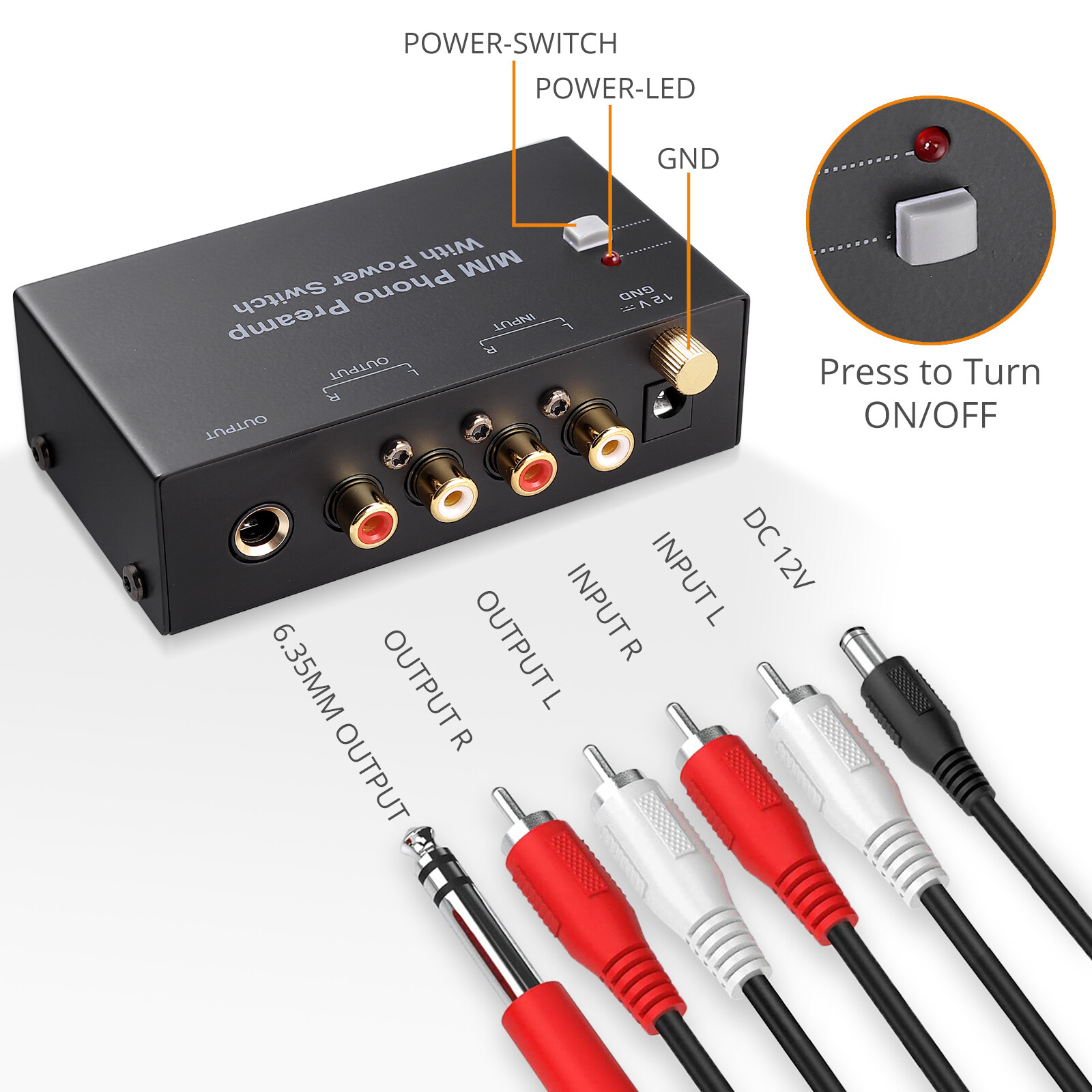

3. The power switch on the front of the product can easily turn on/off the power supply, eliminating the tedious operation of plugging and unplugging the power cord, and at the same time increasing the service life of the product.

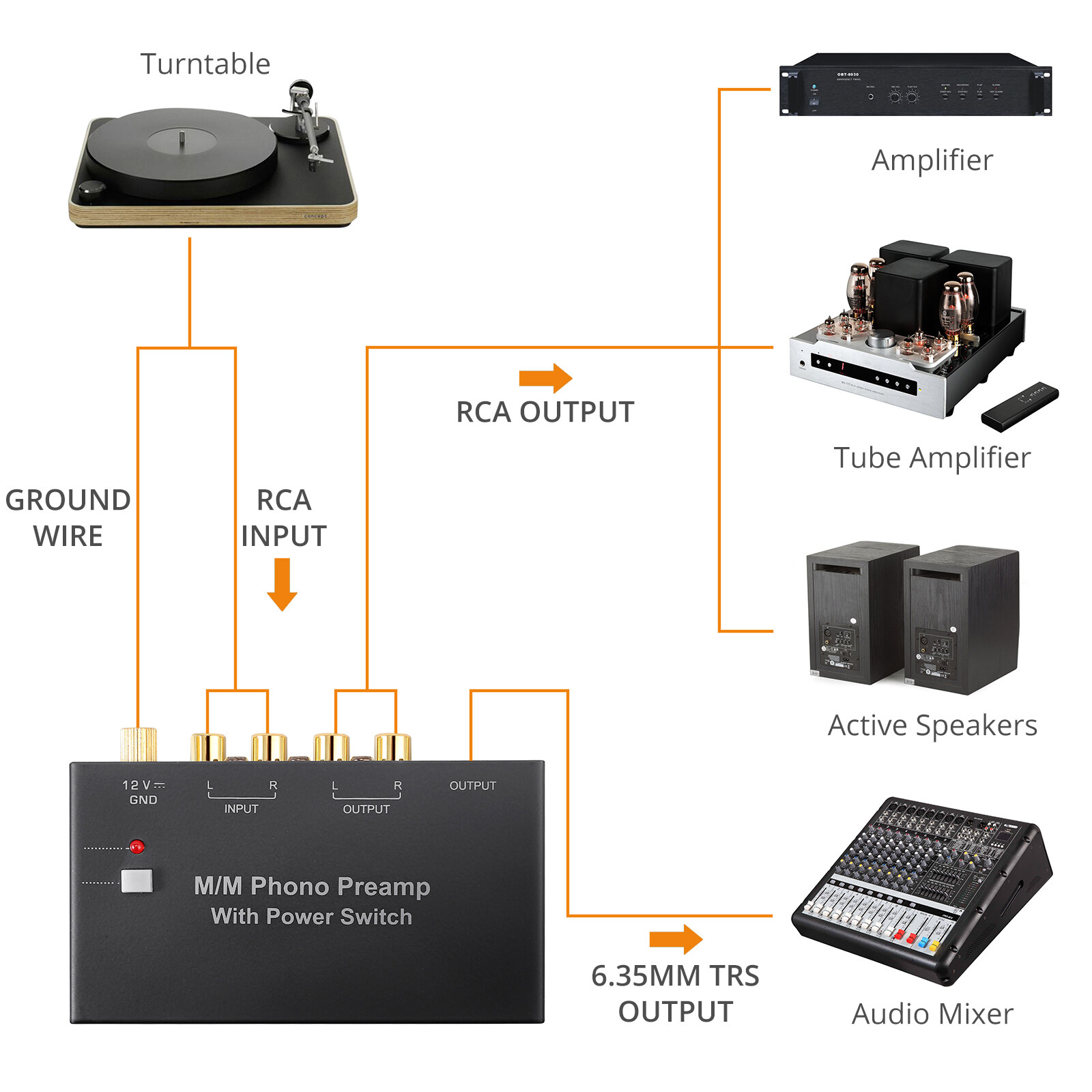

4. The product has left and right channel RCA input and output, and is also equipped with a 1/4'' 6.35mm output interface and a 3.5mm adapter, which is extremely adaptable and can be connected to speakers, computers, laptops, etc. (Note: The adapter does not support TRRS stereo + microphone headphones. This kind of headphones can only hear mono when using them. It is recommended to use only TRS headphones)
5. This product is plug and play, easy to use, and can connect any phono to modern audio equipment without the need for a dedicated phono input to amplify the music.

Specification:
Color: Black
Material: Metal
Mains connection: external power supply,12 V / 150 mA;

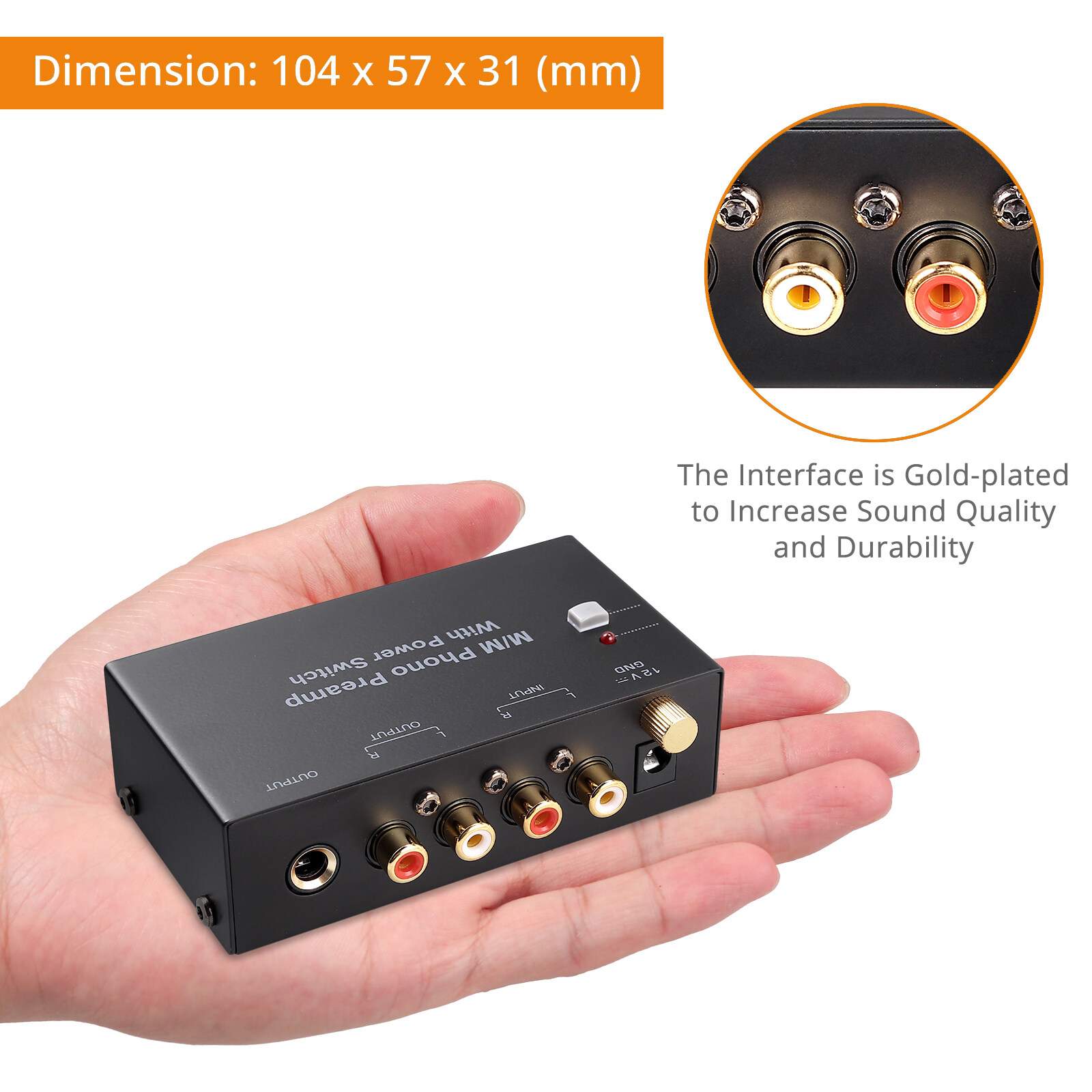

Dimensions (H x D x W) approx. 32 x 103 x 64 mm;
Weight approx. 0.40 lbs / 0.180 kg;
Input:
Type RCA connector
Impedance approx. 47 kW
Max. input level -23.5 dBV @ 1kHz
Output:
Type RCA and ¼” TRS, stereo connectors
Impedance approx. 50 W
Max. output level +11.5 dBV @ 1 kHz
System Specifications:
Frequency response:RIAA
THD:0.06% typ. @ -40 dBu/1 kHz
Gain:35 dB
Signal-to-noise ratio:68 dBu @ 0 dBu, A-weighted
Input sensitivity:5.3 mV @ 1 kHz

Note:

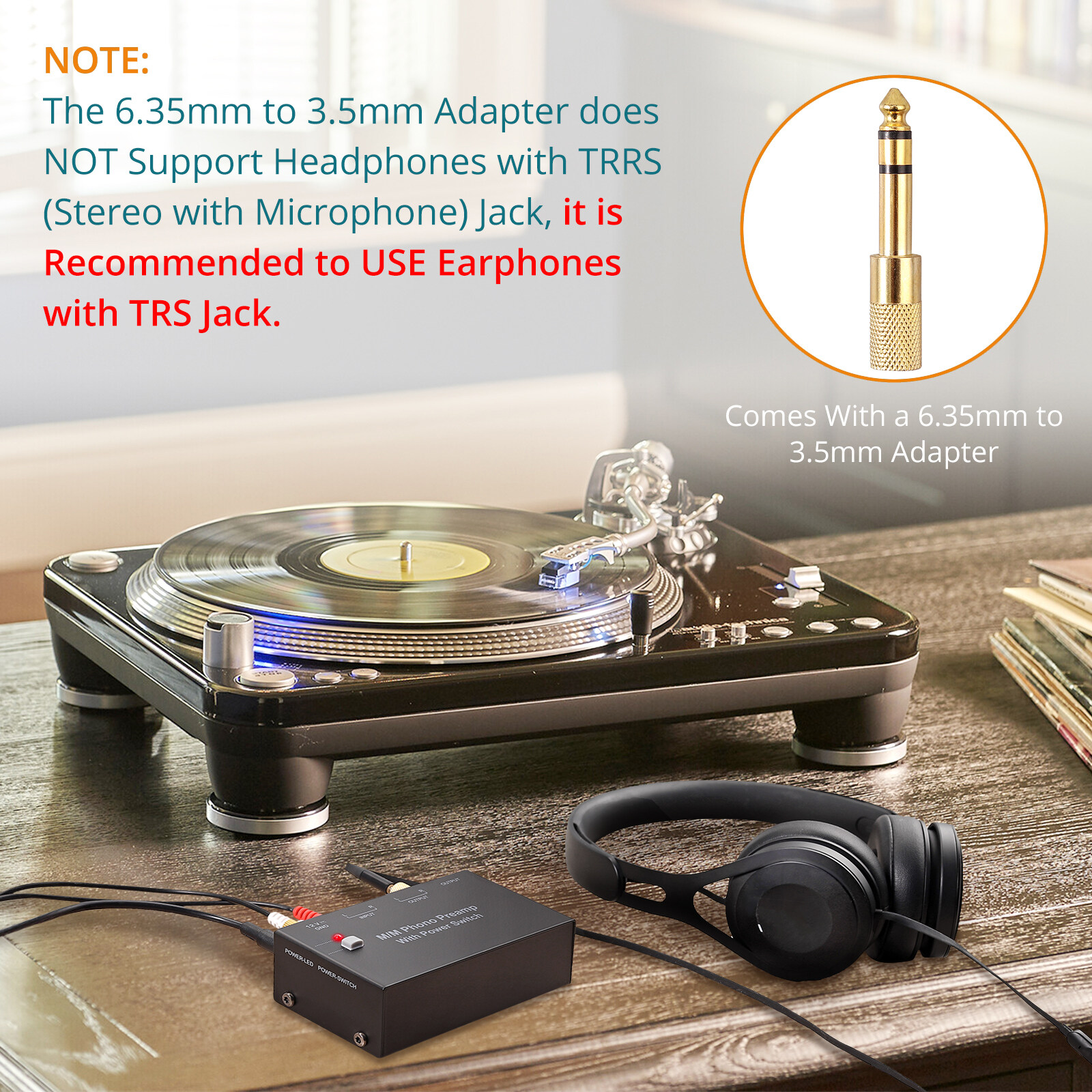

The adaptor does not support the earphone with TRRS Jack, which can only hear mono sound during use.

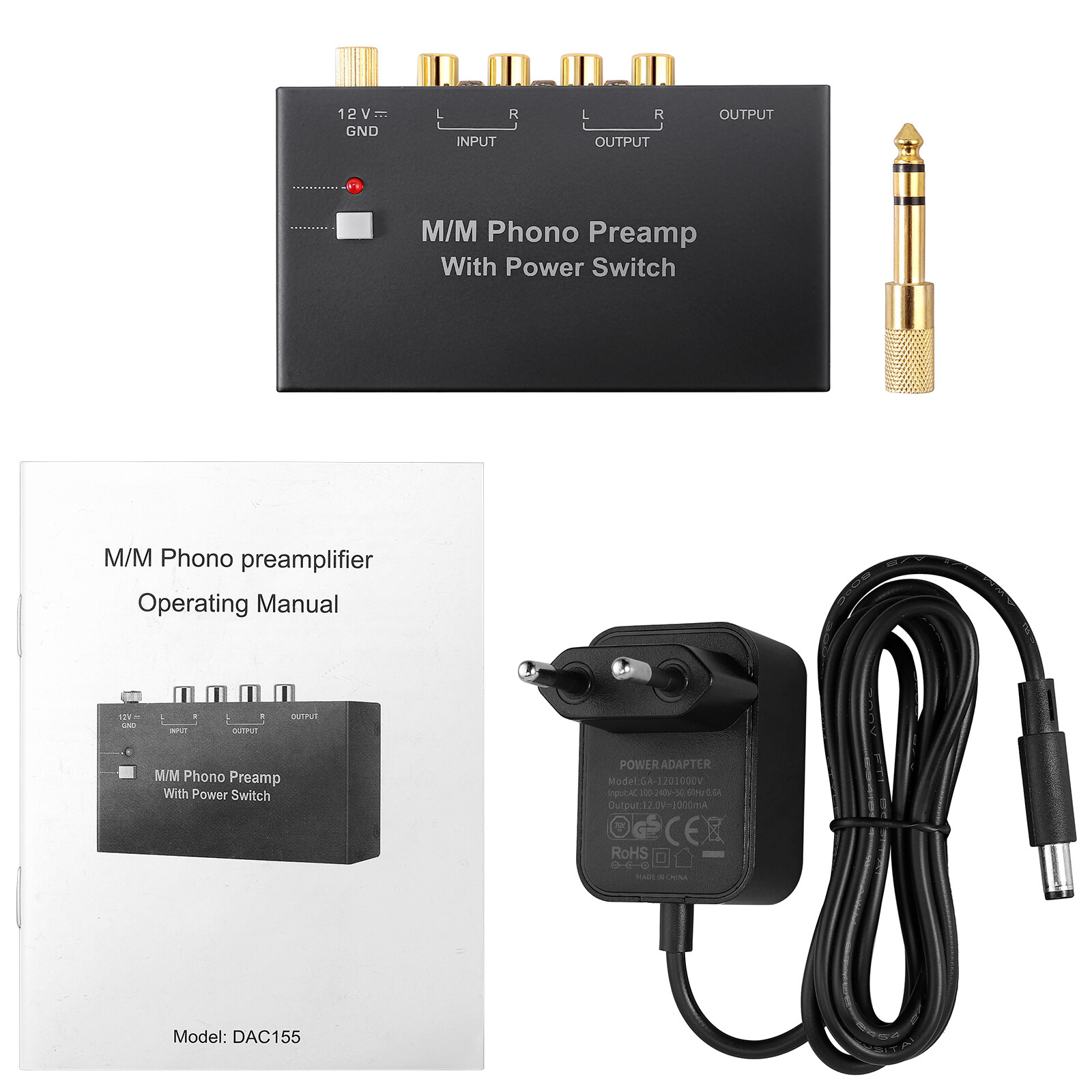

Package includes:
1 x Phono Preamp
1 x 3.5mm to 6.35mm adapter
1 x Power Adapter
1 x User Manual
