Brand：KGUSS

Model：DP-A1

Working Voltage ：24-36V

（The voltage shall not exceed 36V and the current shall not exceed 5A）

Frequency Range：20Hz-20KHz(±3dB)

power output：120W*2

Speaker matching impedance：4Ω-8Ω

Sensitivity：0.2mV

SNR：≥105dB

THD：≤0.01%

Bit wide：16-24Bit

Sampling rate：BT: 24Bit/48kHz

USB / Optical / Coaxial / AUX（44.1-192kHz）

bluetooth specification：BT4.2 Support APTX

PC-USB System supported：XP、W7、W8、W10、MAC、Linux

High and low range adjustment ：±18dB

size：185mm*125mm*35mm

weight：1.6KG

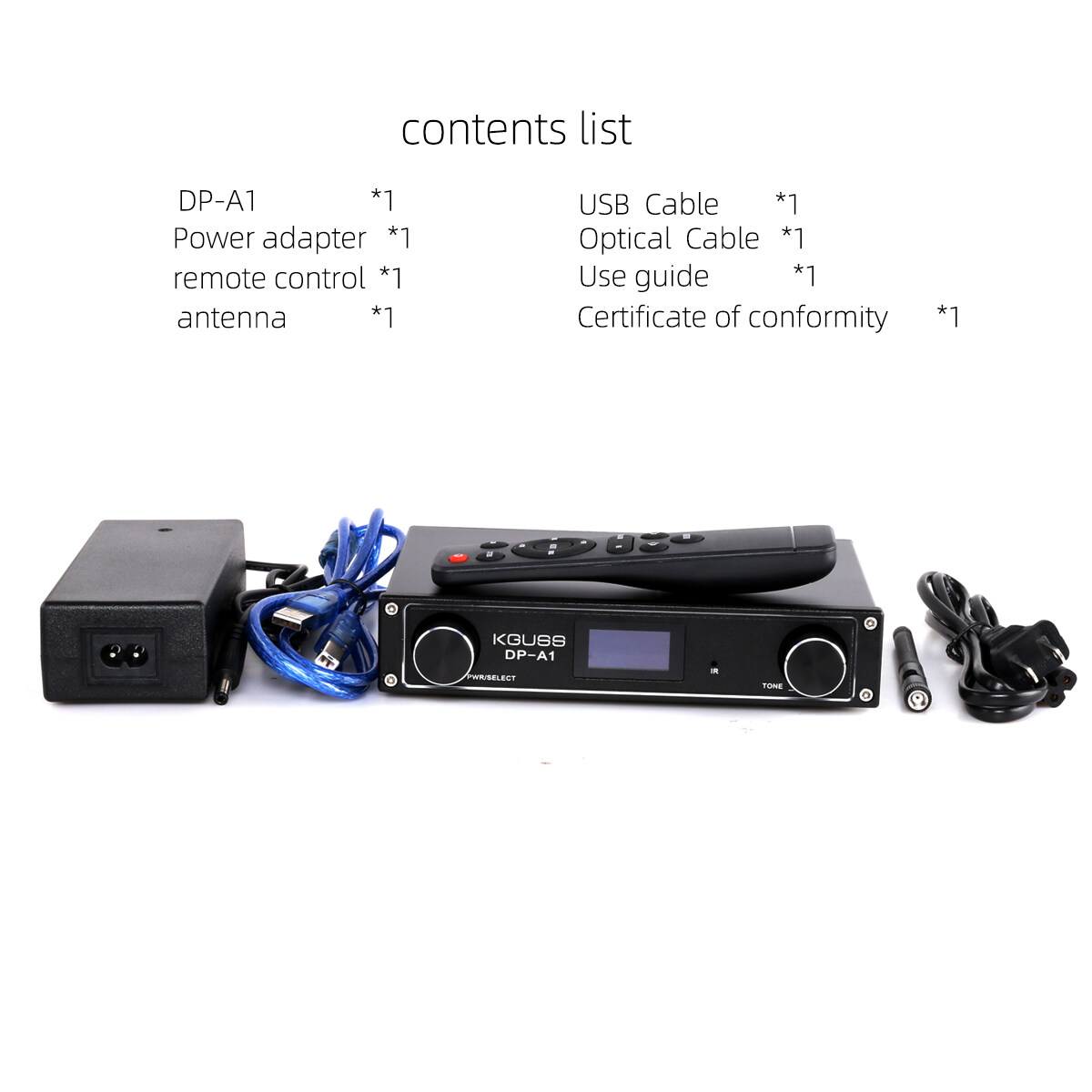

PRODUCT LIST

DP-A1 *1

32V5A Power adapter *1

remote control *1

Antenna *1

USB Cable *1

Optical Cable *1

Use guide *1

Certificate of conformity *1
