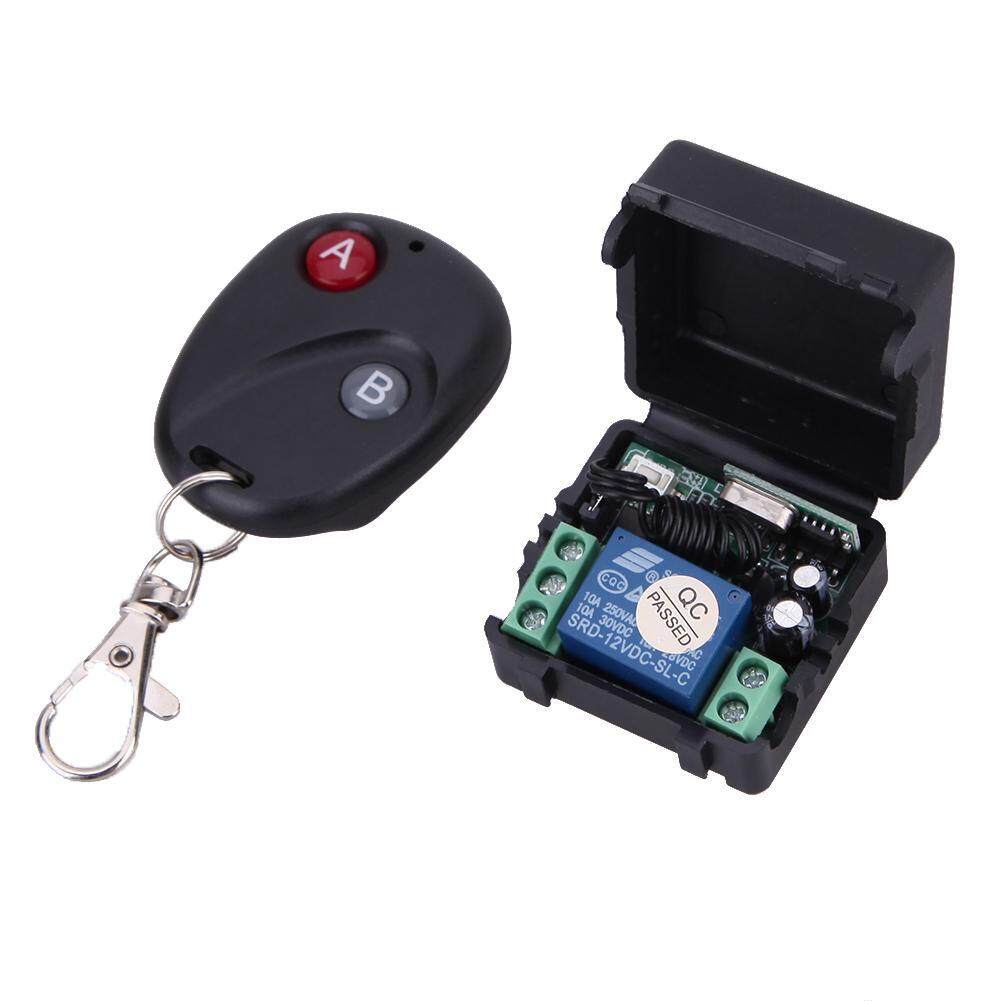

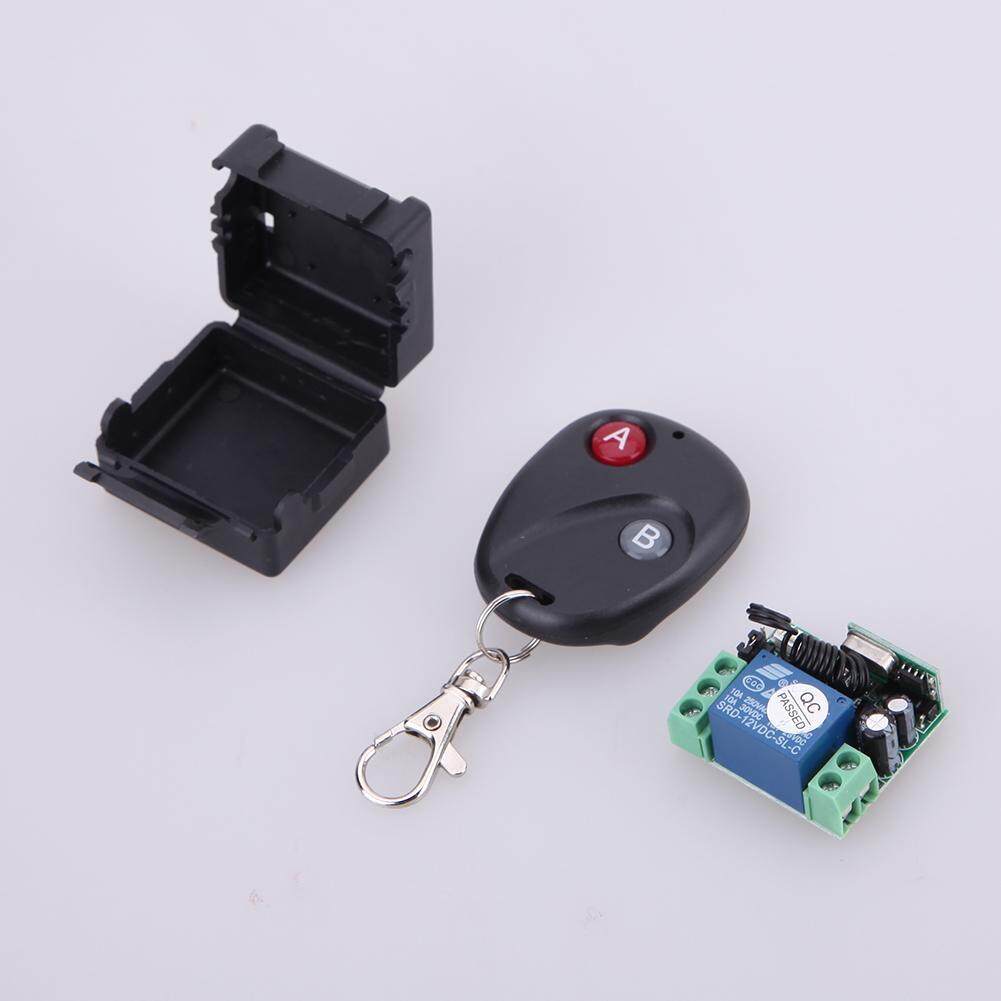

Wireless Remote Control Switch DC12V 10A 433MHz Transmitter with Receiver

Features:
100% new and high quality
Three output working modes for choosing
Safe and flexible for operation and install
Widely use in house, mall, electromobile, cars, motorcycle anti-theft alarm system or other control systems
Specified as preferred components in remote control garage, roller curtain, door locks, remote sensing, telemetry, industrial control and wireless security alarm industry

Specifications:
Operating voltage: DC 12V
Operating Current: ≤ 6mA
Operating frequency: 433MHz
Operating temperature: -40 to + 80
Receiver sensitivity: ≥-105dbm
Output voltage: DC
Output Current: ≤ 10A
Code: Learning code. (Jog/ Non-Locked, Inter-lock/ locked, Auto-lock / Auto-Locked)

Output working way:
Jog /Non-locked: Press a button is working/ on and loosen your finger on the same button is stop/ off. (A channel change needs a remote control button)
Auto-lock: Press one button for one time is working/ on and press the same button is stop/ off. (A channel change needs a remote control button)
Inter-lock / locked: Press a button is working/ on and press another button is stop/ off. (A channel change needs 2 remote control buttons)

Learning and removing method:
1. Learning method: Press the learning code for 3 seconds. The indicator will be off, and then loosen your finger, press any button of the remote control to transmit signal, the indicator flash 3 times and then normally on which means you learn it successfully.
2. Remove/clean method: Press the learning button about 8 seconds, the indicator will be from being off to on all the time, it means the information that you keep have been removed successfully.
