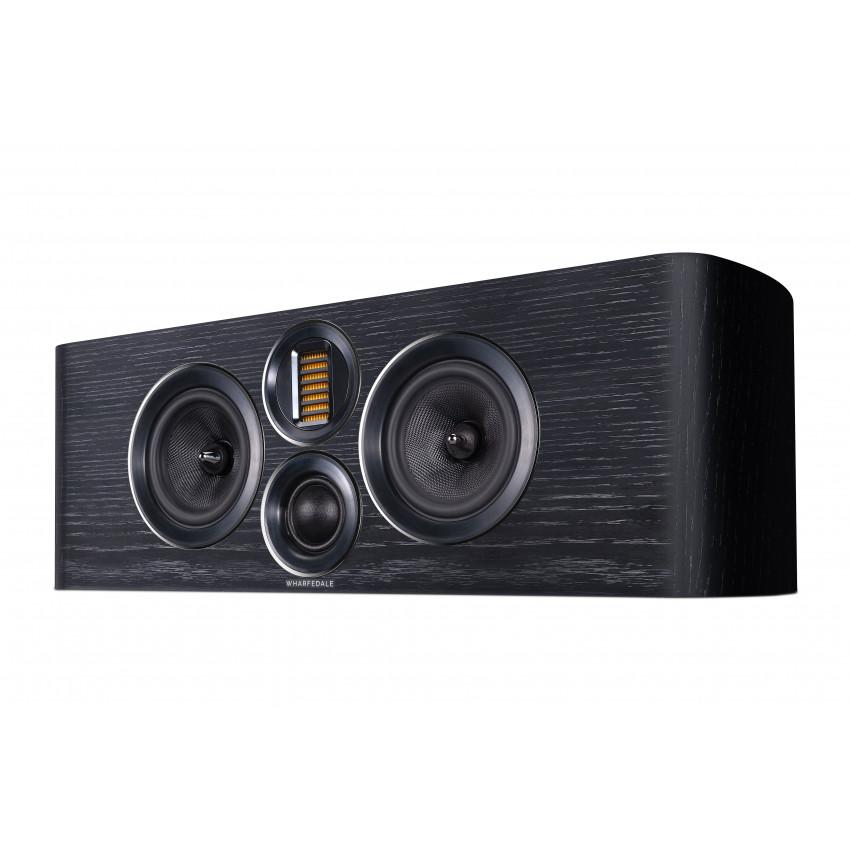

Evo4.c

Wharfedale’s new EVO4 has grown out of the extensive research and development that produced the ELYSIAN flagship loudspeakers and borrows much of the technology involved in ELYSIAN.

The primary focus is on the AMT development resulting in a radically different way of reproducing high frequency detail efficiently and accurately. Similar cabinet technology to ELYSIAN provides a stable and solid foundation for the drive units with radiused edges to help integrate the driver output with the room acoustics. In addition the unique SLPP bass reflex system, as developed for ELYSIAN, is now incorporated in EVO4.

General Description

3-way bookshelf speaker

Enclosure Type

bass reflex

Transducer Complement

3-way

Bass Driver

6.5"(150mm) black woven Kevlar cone x 2

Midrange Driver

2"(50mm) soft dome

Treble Driver

30*60mm AMT

AV Shield

No

Sensitivity (2.83V @ 1M)

90dB

Recommended Amplifier Power

25-150W

Peak SPL

108dB

Nominal Impedance

8Ω Compatible

Minimum Impedance

4.3Ω

Frequency Response (+/-3dB)

48Hz ~ 22kHz

Bass Extension (-6dB)

42Hz

Crossover Frequency

1.5kHz,3.9kHz

Dimensions (HxWxD)

245 x 750 x (340+10)mm

Net Weight

15.8kg/pcs
